Product Details
Discuss your application or request a sample
The workpiece and wheel profile define the order
Begin with the material being ground and a drawing of the feature being produced or restored. For a carbide-tool inquiry, identify the cutting edge or surface involved and the stock that needs to be removed. Supply the existing wheel designation when replacing a proven setup. The wheel must be selected for its approved working surface; a similar-looking profile does not establish interchangeable use.
Make the abrasive layer part of the specification
Outside diameter is only one part of a diamond-wheel description. Abrasive-layer width and depth, body geometry, grit, concentration and bond all belong in the technical discussion. These details cannot be established from the silver body or dark rim in a photograph. A complete drawing and wheel specification make supplier comparison more useful than a comparison of price and diameter alone.
Evaluate the result at the tool, not just at the wheel
Define what a successful trial means for the finished tool or component. Depending on the operation, this may include profile accuracy, edge condition, surface appearance and repeatability. Record the machine setup and inspection method so a promising sample result can be reproduced. Treat a quoted performance improvement as unproven until it is demonstrated under the conditions that matter to your operation.
Application scenarios to evaluate
Use these scenarios to define a sample trial; suitability depends on the supplied specification and approved process.
| Buying situation | Selection focus | Trial objective |
|---|---|---|
| Resharpening a carbide tool | Tool material, edge geometry and wheel profile | Inspect the restored geometry and cutting-edge condition. |
| Replacing an established grinding wheel | Existing designation, drawing and machine setup | Match the complete specification before comparing sample results. |
Specifications and selection details

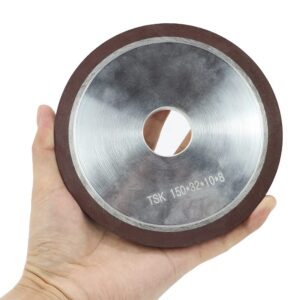

| Nominal size | 6 inches |
|---|---|
| Construction form | Round body with center bore and peripheral abrasive band |
| Selection data required | Wheel profile, thickness, bore, abrasive-layer dimensions, diamond grit, concentration and bond |
| Machine data required | Spindle interface, operating speed, working surface and coolant setup |
Diamond wheel versus a general polishing wheel
This product belongs in the grinding-stage discussion. A wool or felt polishing wheel is selected for a different working action and cannot be assumed to correct the geometry produced during grinding. Likewise, a wheel chosen for one hard material should not be transferred to another material without reviewing the abrasive system. Identify the actual material, including any coating or mixed-material interface.
Prepare a replacement order that can be checked
Photograph the marking on the existing wheel and measure the relevant dimensions using the supplier's drawing convention. Include the bore and mounting arrangement, machine model and coolant setup. Where the old marking is unreadable, say so rather than guessing a grit or bond. Ask for the proposed wheel designation in writing so purchasing, operators and inspection staff can review the same item.
Prepare the technical information for a meaningful quotation
Provide the workpiece drawing or relevant feature dimensions, material description, machine model and existing wheel information. State the finish and geometry requirements and whether the process uses coolant. Ask for the proposed wheel designation and drawing before approving the sample. This gives the technical team a common basis for checking fit and application, while purchasing can compare quotations for the same defined item.
Frequently asked questions
Can the bond type be identified from the photo?
No. The photograph does not establish resin, metal, vitrified or electroplated construction. Request the wheel specification before selecting a process.
What should I send for a replacement wheel quote?
Send the existing wheel marking, dimensioned drawing, grinder model, workpiece material and current grinding operation. Include coolant and finish requirements.
What is a useful acceptance check for a trial wheel?
Use a representative workpiece and an agreed inspection method. Compare the required geometry and surface condition, and record the wheel designation and machine setup. A photograph alone is not enough to accept a precision-grinding result.
Can the 6-inch label determine the bore and thickness?
No. These dimensions must be specified separately, together with the wheel profile and abrasive-layer geometry. Match the complete wheel drawing to the machine and intended grinding operation.
Is the wheel suitable for wet or dry grinding?
Select this with the supplied bond specification and the machine/process requirements. Do not infer wet or dry suitability from the photograph. Obtain the approved application information for the exact wheel before use.
Can a polishing wheel replace a diamond grinding wheel?
They should not be treated as interchangeable. A grinding operation establishes a different process requirement from compound polishing. Select each stage around the material, geometry and result it must produce.
Request a sample or a defined wholesale quotation
Send your required size and mounting details, workpiece material, finish target and machine model. If replacing an existing item, include its marking and front, reverse and side photographs. State the sample quantity, expected order quantity, packaging requirements and destination.
Ask for the proposed specification, included accessories, price, sample terms and lead time in the quotation. For a repeat purchasing program, keep the approved sample reference and the agreed inspection criteria with every order.
Send your requirements to Cornovo Abrasive
